Osburn
Matrix 1900 Wood Insert
$2,899.00
Description

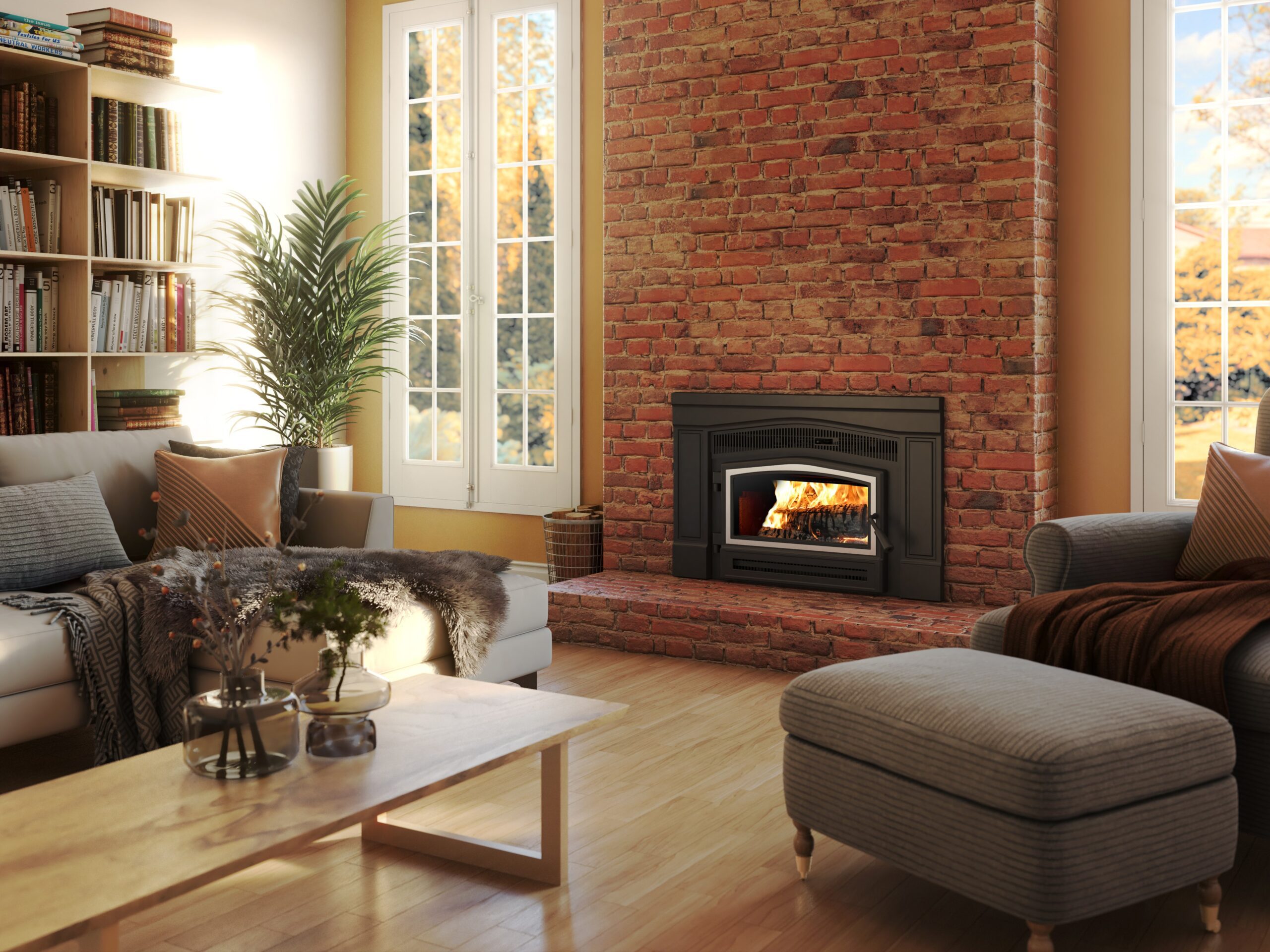

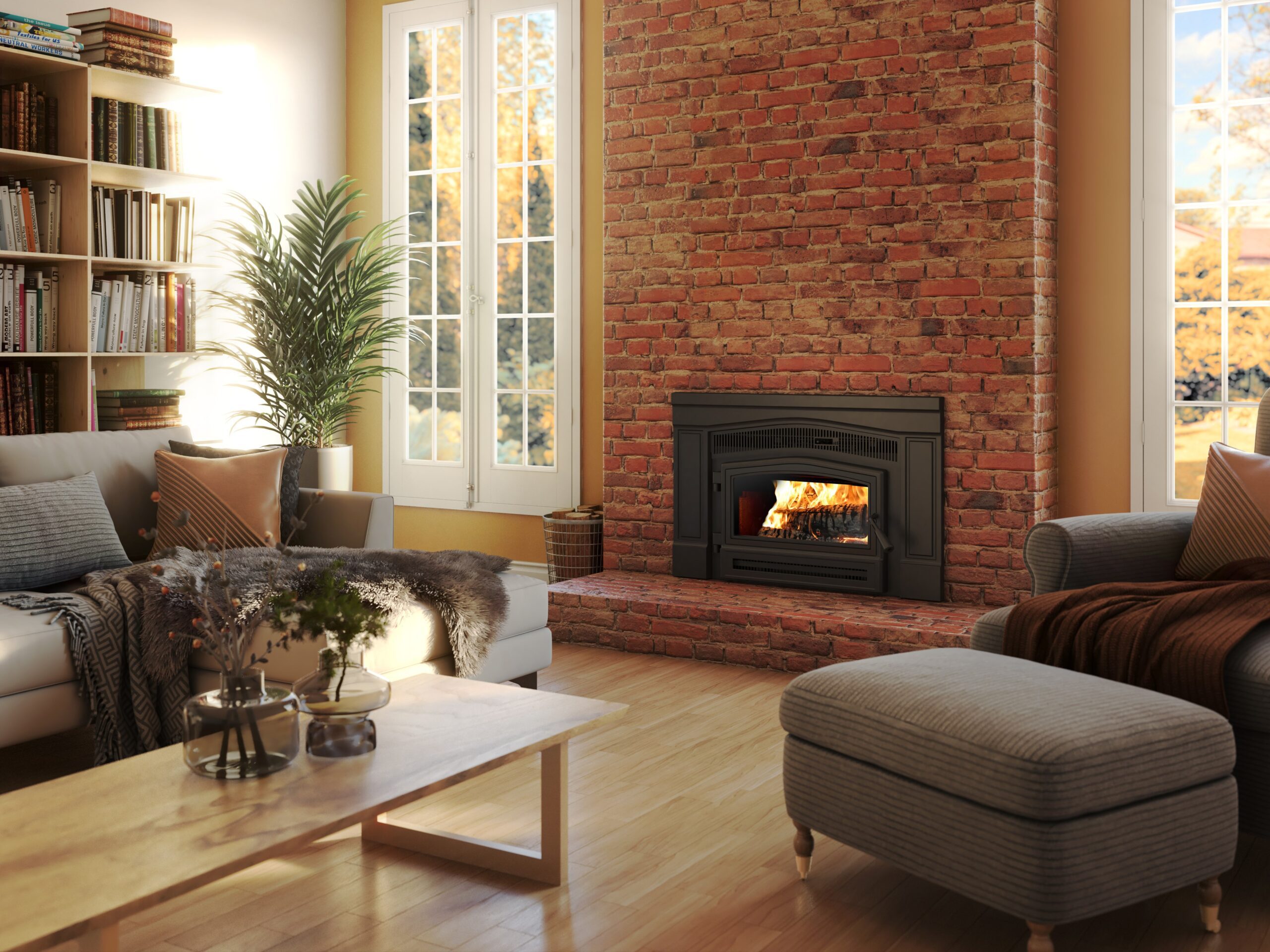

Treat your family to incomparable comfort with the Matrix 1900 wood-burning insert. Its magnificent cast-iron faceplate is adorned with a patterned upper louver and columns that frame its large door. Its discreet black wooden handle, air control with removable handle as well as flush mount blower disappear to leave room for the delicate details of its faceplate. Its large glass surface highlights a panoramic view of the flames to fully enjoy your moments near the fire.
The Matrix 1900 is a compact unit that has tapered top and sides for easy installation in smaller hearths. The deep bottom of its combustion chamber allows ash to accumulate and reduces the frequency of cleaning
General Features
Combustion technology: Non-catalytic
High-efficiency certified appliance: Yes, EPA 2020 approved
Maximum log length: 17″
Log positioning: Loading over width
Chimney diameter: 6″
Flue outlet diameter: 6″
Type of chimney Liner: ULC-S635, CAN/ULC-S640, UL1777
Minimum chimney height (feet): 12′
Baffle type: C-Cast or equivalent
Approved for a mobile home installation: No
Shipping Weight: 332 lb (151 kg)
Door type: Single, glass with cast iron frame
Glass type: Ceramic glass
Glass surface – dimensions (Width X Height): 18″ X 8 1/8″
Glass air-wash system: Yes
Premium quality blower included (CFM): 90
Overall dimension (Height): 23 7/8″
Overall dimension (Width): 36″
Overall dimension (Depth): 21″
Door opening – dimension (Height): 7 7/8″
Door opening – dimension (Width): 18 1/4″
Firebox – dimension (Height): 8 7/8″
Firebox – dimension (Width): 16 3/4″
Firebox – dimension (Depth): 12 3/8″
Moulded refractory bricks: Yes
Stainless-steel secondary-air system improving gas combustion: Yes
Steel thickness – body: 3/16″
Steel thickness – top: 3/16″
Fireplace opening – minimum (Height): 19″
Fireplace opening – minimum (Width): 25″
Fireplace opening – minimum (Depth): 15 1/2″
USA standard (emissions): EPA
Canadian Standard (emissions): CSA B415.1-10
USA standard (safety): UL 1482, UL 737
Canadian standard (safety): ULC S628
Tested and listed as per applicable standards By an accredited laboratory: (CAN/USA)
Warranty: Limited lifetime
Appliance Performance
Fuel type : Dry cordwood (16″ recommended)
Recommended heating area-ft² :250 – 1,200
Overall firebox volume-ft³ : 1.1
EPA loading volume-ft³ : 1.03
Maximum burn time : 7 h
Maximum heat output-dry cordwood : 45,000 BTU/h (13.19 kW)
Overall heat output rate < : 8,471 BTU/h (2.48 kW) to 31,700 BTU/h (9.29 kW)
Average overall efficiency (dry cordwood) : 75 % (HHV) 80 % (LHV)
Optimum overall efficiency : 82 %
Optimum heat transfer efficiency : 78 %
Average particulate emissions rate : 1.5 g/h
Average CO : 34 g/h
