Osburn
950 Wood Stove
$1,849.00
Description

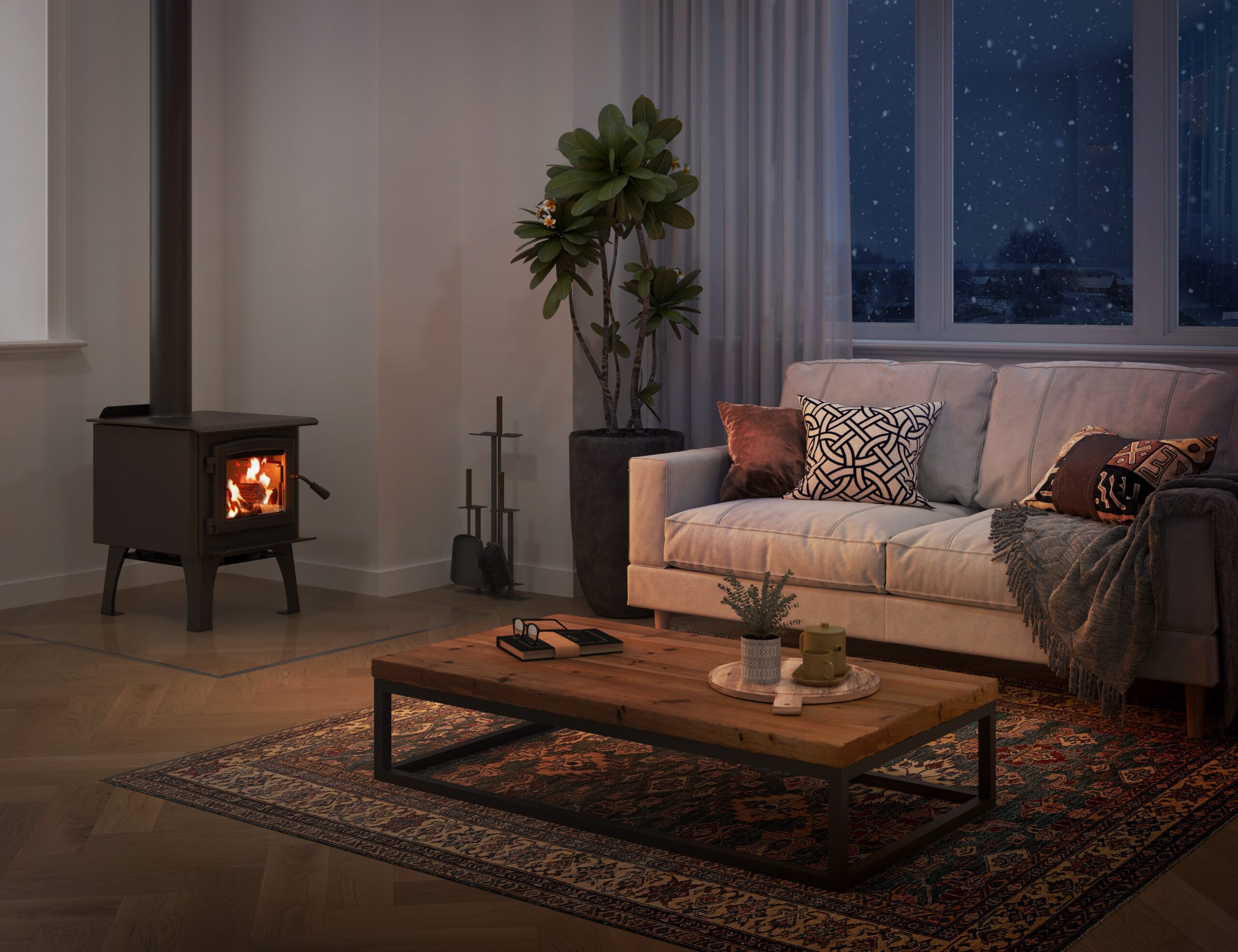

Would you like to add a dose of warmth and coziness to your home? Bring comfort and functionality to your daily life with the Osburn 950, a small wood stove that will quickly become your cold-season essential.
Equipped with high density bricks, a stainless steel heat shield added to the C-Cast firestop, a top heat deflector to redirect heat in front of the stove as well as side panels that reduce clearances, the Osburn 950 offers quality and performance. Enjoy your winter evenings more than ever before!
General Features
Combustion technology: Non-catalytic
High-efficiency certified appliance: Yes, EPA 2020 approved
Maximum log length: 17″
Log positioning: Loading over depth
Chimney diameter: 6″
Flue outlet diameter: 6″
Type of chimney: CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height: (feet) 12′
Baffle type: C-Cast or equivalent
Approved for an alcove installation: Yes
Approved for a mobile home installation: Yes, with fresh air intake
Shipping Weight: 317 lb (144 kg)
Door type: Single, glass with cast iron frame
Glass type: Ceramic glass
Glass surface – dimensions: (Width X Height) 10 1/4″ x 8 7/8″
Glass air-wash system: Yes
Overall dimension (Height): 28 7/8”
Overall dimension (Width): 20 1/4”
Overall dimension (Depth): 27 7/8”
Door opening – dimension: (Height) 7 5/8″
Door opening – dimension: (Width) 12″
Firebox – dimension (Height): 11 3/4″
Firebox – dimension (Width): 14 1/4″
Firebox – dimension (Depth): 19 1/8″
Firebox lined with refractory bricks for better heat distribution: Yes
Stainless-steel secondary-air system improving gas combustion: Yes
Steel thickness – body: 3/16″
Steel thickness – top: 5/16″
USA standard (emissions): EPA 2020
Canadian Standard (emissions): CSA B415.1-10
USA standard (safety): UL 1482, UL 737
Canadian standard (safety): ULC S627
Tested and listed as per applicable standards By an accredited laboratory (CAN/USA)
Warranty: Limited lifetime
Appliance Performance
Fuel type : Dry cordwood (16″ recommended)
Recommended heating area-ft²: 250 – 1,200
Overall firebox volume-ft³ : 1.8
EPA loading volume-ft³ : 1.55
Maximum burn time : 5 h
Maximum heat output-dry cordwood : 45,000 BTU/h (13.19 kW)
Overall heat output rate: 12,124 BTU/h (3.55 kW) to 26,700 BTU/h (7.83 kW)
Average overall efficiency (dry cordwood) : 74 % (HHV) (4) 79 % (LHV) (5)
Optimum overall efficiency : 80 %
Optimum heat transfer efficiency : 79 %
Average particulate emissions rate : 1.8 g/h
Average CO : 74 g/h
